Probabilistic Circuits User Guide#
This tutorial walks you through the basics of using the Probabilistic Circuits (PC) from this package. First, let’s start by importing the necessary modules.
import plotly
plotly.offline.init_notebook_mode()
import plotly.graph_objs as go
from random_events.interval import closed_open, closed
from random_events.product_algebra import Continuous, Event, SimpleEvent
from probabilistic_model.distributions import *
from probabilistic_model.probabilistic_circuit.rx.probabilistic_circuit import *
Let’s have a look at input units. Input units (Leaves) are nodes that are at the end of the probabilistic circuit. These leaves can contain any distribution and will try to call it for the respective inference tasks. Hence, the distributions need to implement the methods required for the inference tasks. Leaf distributions have to be wrapped in a leaf node.
Currently supported distributions are:
(Truncated) Normal Distributions
Uniform Distributions
Dirac Delta Distributions
Multinomial Distributions
Integer Distributions
You can create them by calling the corresponding class constructors. For this tutorial, we will stick to normal distributions.
x = Continuous("x")
y = Continuous("y")
pc = ProbabilisticCircuit()
p_x_1 = leaf(GaussianDistribution(x, 0, 1), pc)
We can always look at the graph that we have by calling the plot_structure method.
pc.plot_structure()
One node only is pretty boring, so let us create a gaussian mixture model.
p_x_2 = leaf(GaussianDistribution(x, 2, 1), pc)
p_x = SumUnit(probabilistic_circuit=pc)
p_x.add_subcircuit(p_x_1, np.log(0.3))
p_x.add_subcircuit(p_x_2, np.log(0.7))
pc.plot_structure()
Now we got a more interesting model. We can see the nodes we created and the connections between them. Even the log_weights are indicated by the opacity of an edge. Let’s create a more complex model by becoming multivariate through product units.
p_y = leaf(GaussianDistribution(y, 1, 2), pc)
p_xy = ProductUnit(probabilistic_circuit=pc)
p_xy.add_subcircuit(p_x)
p_xy.add_subcircuit(p_y)

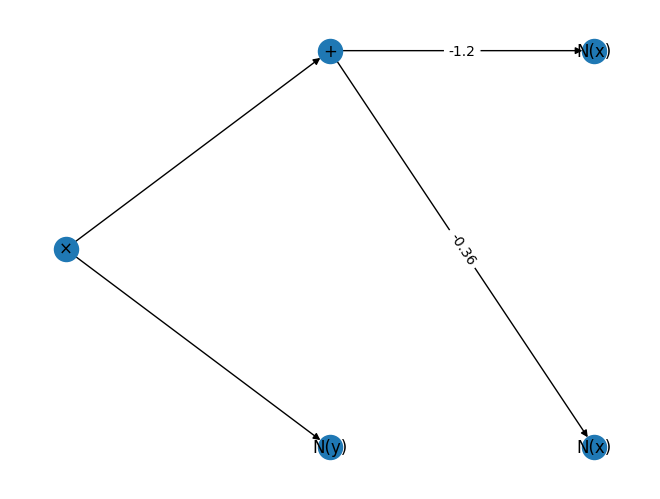

pc.plot_structure()
Now we have a model that is a bit more complex. We can now observe how conditioning modifies the structure of a probabilistic circuit.
e = SimpleEvent({x: closed_open(0, 1),
y: closed_open(0, 0.5 ) | closed(1, 1.5)}).as_composite_set()
p_xy_conditioned, _ = p_xy.probabilistic_circuit.truncated(e)
p_xy_conditioned.plot_structure()
We can also look at the distributions on the data level.
fig = go.Figure(p_xy_conditioned.plot(), p_xy_conditioned.plotly_layout())
fig.show()
We can also create a circuit from a bayesian network.
from probabilistic_model.bayesian_network.bayesian_network import *
from random_events.set import *
from random_events.variable import *
from random_events.interval import *
from enum import IntEnum
# Declare variable types and variables
class Success(IntEnum):
FAILURE = 0
SUCCESS = 1
class ObjectPosition(IntEnum):
LEFT = 0
RIGHT = 1
CENTER = 2
class Mood(IntEnum):
HAPPY = 0
SAD = 1
success = Symbolic("Success", Set.from_iterable(Success))
object_position = Symbolic("ObjectPosition", Set.from_iterable(ObjectPosition))
mood = Symbolic("Mood", Set.from_iterable(Mood))
# construct Bayesian network
bn = BayesianNetwork()
# create root
cpd_success = Root(SymbolicDistribution(success, MissingDict(float, {hash(Success.FAILURE): 0.8, hash(Success.SUCCESS): 0.2})), bayesian_network=bn)
# create P(ObjectPosition | Success)
cpd_object_position = ConditionalProbabilityTable(bayesian_network=bn)
cpd_object_position.conditional_probability_distributions[Success.FAILURE] = SymbolicDistribution(object_position,
MissingDict(float, {ObjectPosition.LEFT: 0.3,
ObjectPosition.RIGHT: 0.3,
ObjectPosition.CENTER: 0.4}))
cpd_object_position.conditional_probability_distributions[Success.SUCCESS] = SymbolicDistribution(object_position,
MissingDict(float, {ObjectPosition.LEFT: 0.3,
ObjectPosition.RIGHT: 0.3,
ObjectPosition.CENTER: 0.4}))
bn.add_edge(cpd_success, cpd_object_position)
# create P(Mood | Success)
cpd_mood = ConditionalProbabilityTable(bayesian_network=bn)
cpd_mood.conditional_probability_distributions[Success.FAILURE] = SymbolicDistribution(mood,
MissingDict(float, {Mood.HAPPY: 0.2,
Mood.SAD: 0.8}))
cpd_mood.conditional_probability_distributions[Success.SUCCESS] = SymbolicDistribution(mood,
MissingDict(float, {Mood.HAPPY: 0.9,
Mood.SAD: 0.1}))
bn.add_edge(cpd_success, cpd_mood)
# create P(X, Y | ObjectPosition)
cpd_xy = ConditionalProbabilisticCircuit(bayesian_network=bn)
default_circuit = ProbabilisticCircuit()
product_unit = ProductUnit(probabilistic_circuit=default_circuit)
product_unit.add_subcircuit(leaf(GaussianDistribution(x, 0, 1), default_circuit))
product_unit.add_subcircuit(leaf(GaussianDistribution(y, 0, 1), default_circuit))
cpd_xy.conditional_probability_distributions[hash(ObjectPosition.LEFT)] = default_circuit.truncated(SimpleEvent({x: closed(-np.inf, -0.5)}).as_composite_set())[0]
cpd_xy.conditional_probability_distributions[hash(ObjectPosition.RIGHT)] = default_circuit.truncated(SimpleEvent({x: open(0.5, np.inf)}).as_composite_set())[0]
cpd_xy.conditional_probability_distributions[hash(ObjectPosition.CENTER)] = default_circuit.truncated(SimpleEvent({x: open_closed(-0.5, 0.5)}).as_composite_set())[0]
bn.add_edge(cpd_object_position, cpd_xy)

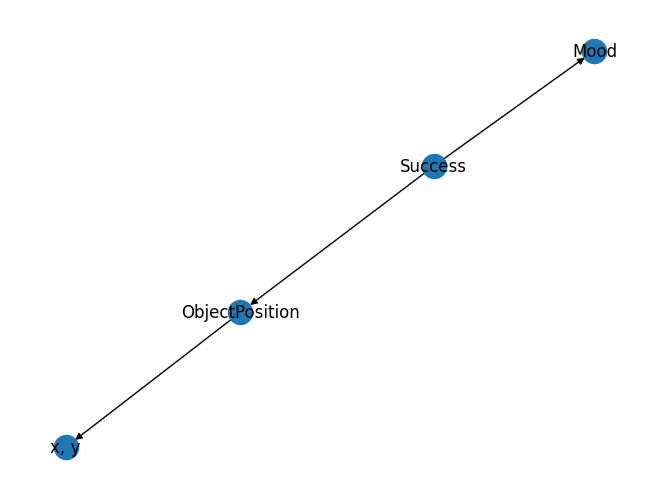

bn.plot()

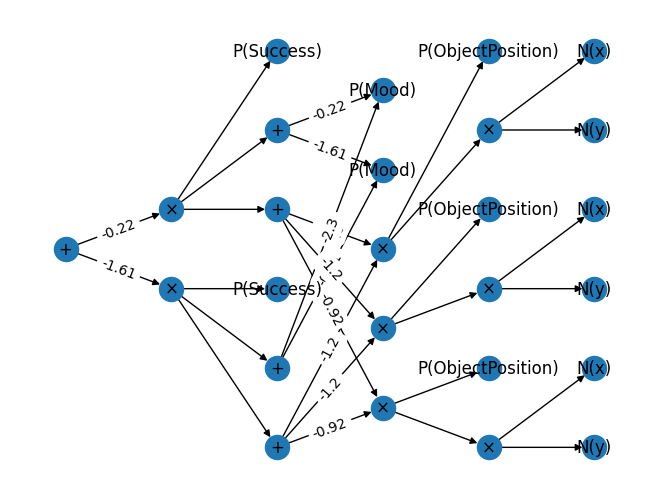

pc_bn = bn.as_probabilistic_circuit()
pc_bn.plot_structure()
